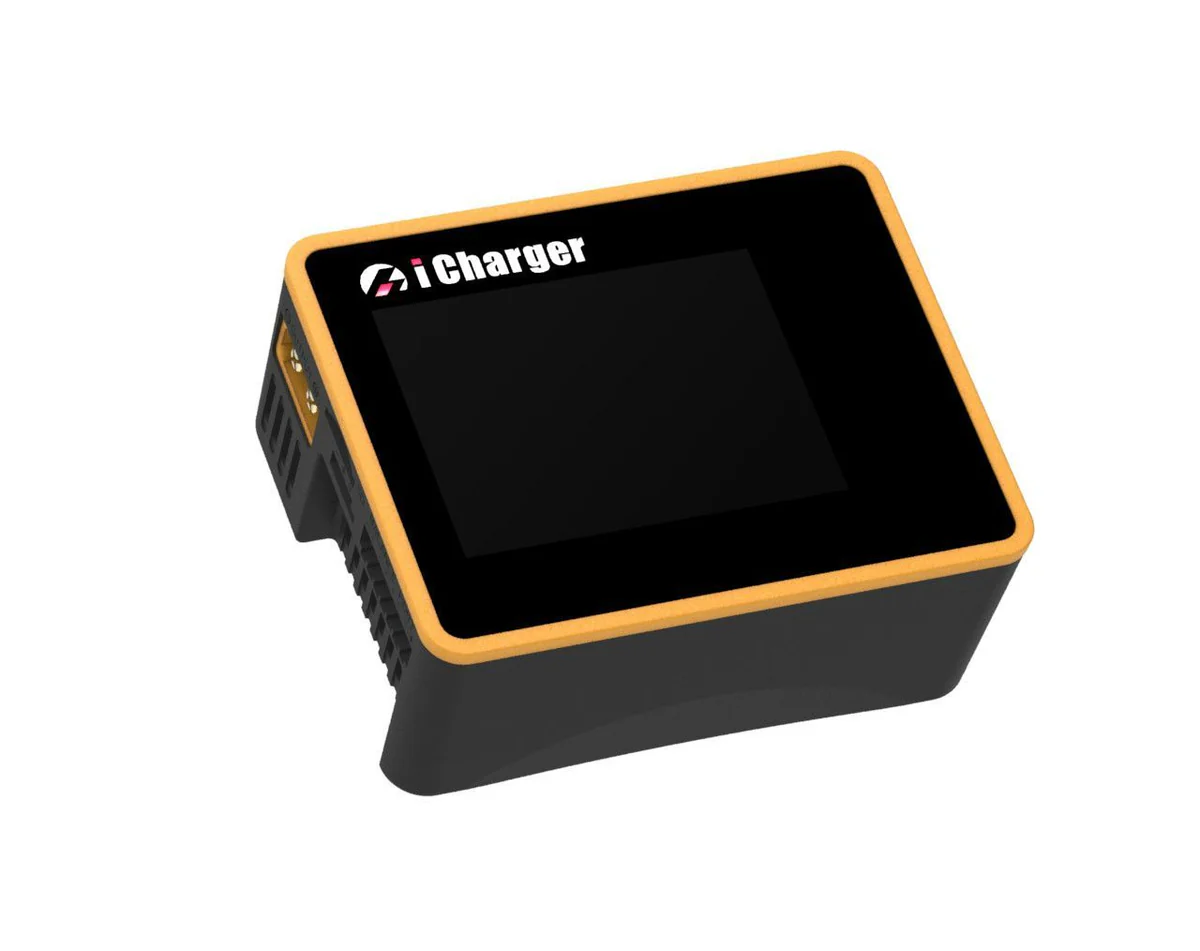

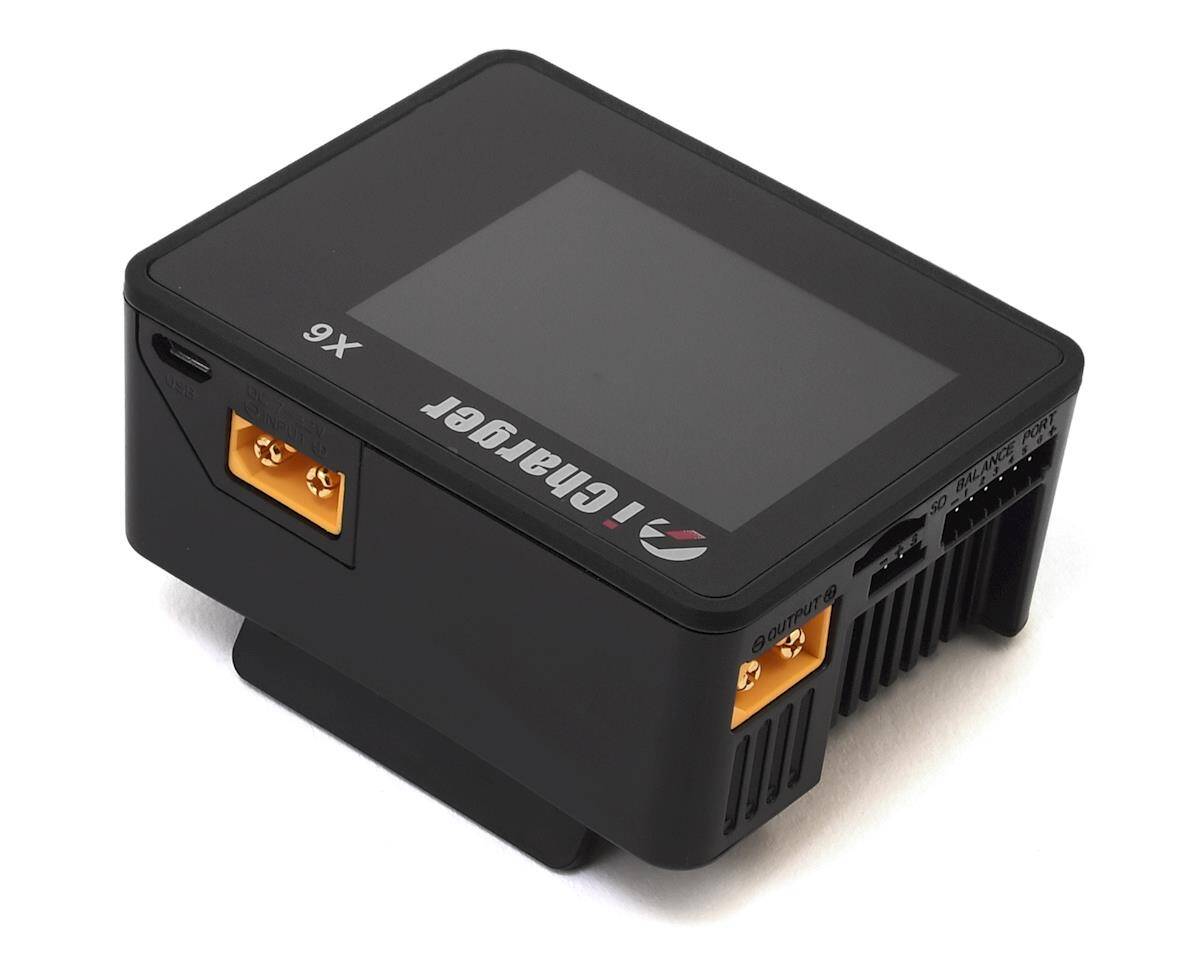

Junsi iCharger X6

Description

Junsi iCharger X6

Junsi X6 Charger performance stands out for racers who demand fast, safe charging. Moreover, the Special Edition pairs high output with a compact, clean layout. Therefore, it fits a busy pit table without sacrificing capability.

Notably, the X6 targets precision battery management for many chemistries. In addition, it adds strong protection tools that help prevent common charging mistakes. As a result, you can focus on setup and laps, not worry.

High-power charging and converter tech

First, the X6 uses synchronous buck-boost DC/DC converter technology. Consequently, it can deliver high power across a wide input range. Also, it reaches up to 800W maximum charge power for demanding packs.

• Up to 800W maximum charge power
• Up to 30A maximum charge and discharge current
• 10.0 to 32.0VDC input range for flexible DC sources

Battery types and broad compatibility

Second, the charger supports many battery types for RC and beyond. Additionally, you can standardize one charger across several classes and vehicles. For example, it handles modern lithium packs and common nickel packs.

• LiPo, LiIo, LiFe, LiHV, LTO, NiZn
• Also supports 1-20s NiMH/NiCd batteries
• Furthermore supports 1-12s Pb batteries

Protection, cooling, and temperature control

Next, digital-power mode adds extra safety for tough track days. Specifically, you get layered protection against current and voltage issues. Meanwhile, the internal temperature sensor actively adjusts fan speed for steady cooling.

• Over-current protection
• Over-voltage protection
• Input under-voltage protection
• Input undercurrent protection

If heat rises, the X6 reduces output power at the Power Reduce temperature. Then it shuts down when temperature reaches the Shut-down threshold. Consequently, you protect both charger and packs during long sessions.

Display, discharge modes, and IR checks

Also, the 2.4-inch IPS LCD screen shows key data at a glance. For example, you can track current, voltage, power, and capacity during a charge. In addition, you can monitor internal resistance to spot weak cells early.

• Readouts include current, voltage, power, capacity, internal resistance, time, and temperature
• Measure pack IR and each lithium cell IR, both offline and online

Moreover, multiple discharge options help with storage and tuning. Specifically, you can choose self-discharge, regenerative to input discharge, or lithium extra expanding discharge. To understand why internal resistance matters, review battery internal resistance measurement basics.

Key specifications and what you get

Finally, Junsi X6 Charger specs highlight a light, travel-ready unit with serious output. Additionally, the included cables help you get started quickly. Therefore, it works well for racers who want power and consistency in one box.

• Net weight: 168g
• Dimensions: 83x65x37 ±0.5mm
• Maximum input current limit: <35A
• Maximum charge power: 800W
• Maximum discharge power: 30W
• Maximum regenerative discharge power: 800W
• Maximum extra discharge power: 900W @30V/30A
• Maximum balancing drain: >2A

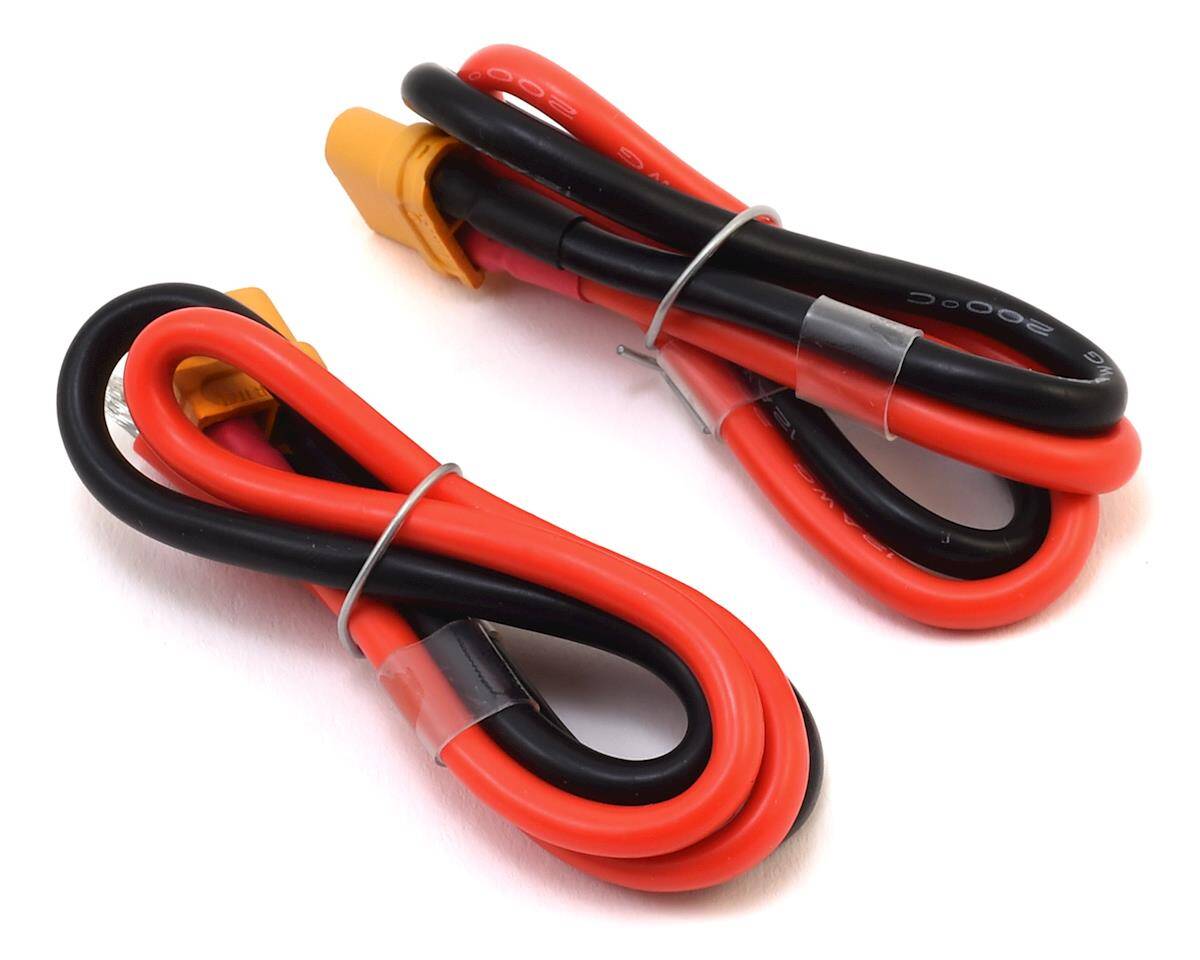

• (2) Input/Output Cables
• (1) CD Rom Manual

View more Junsi iCharger products here.
