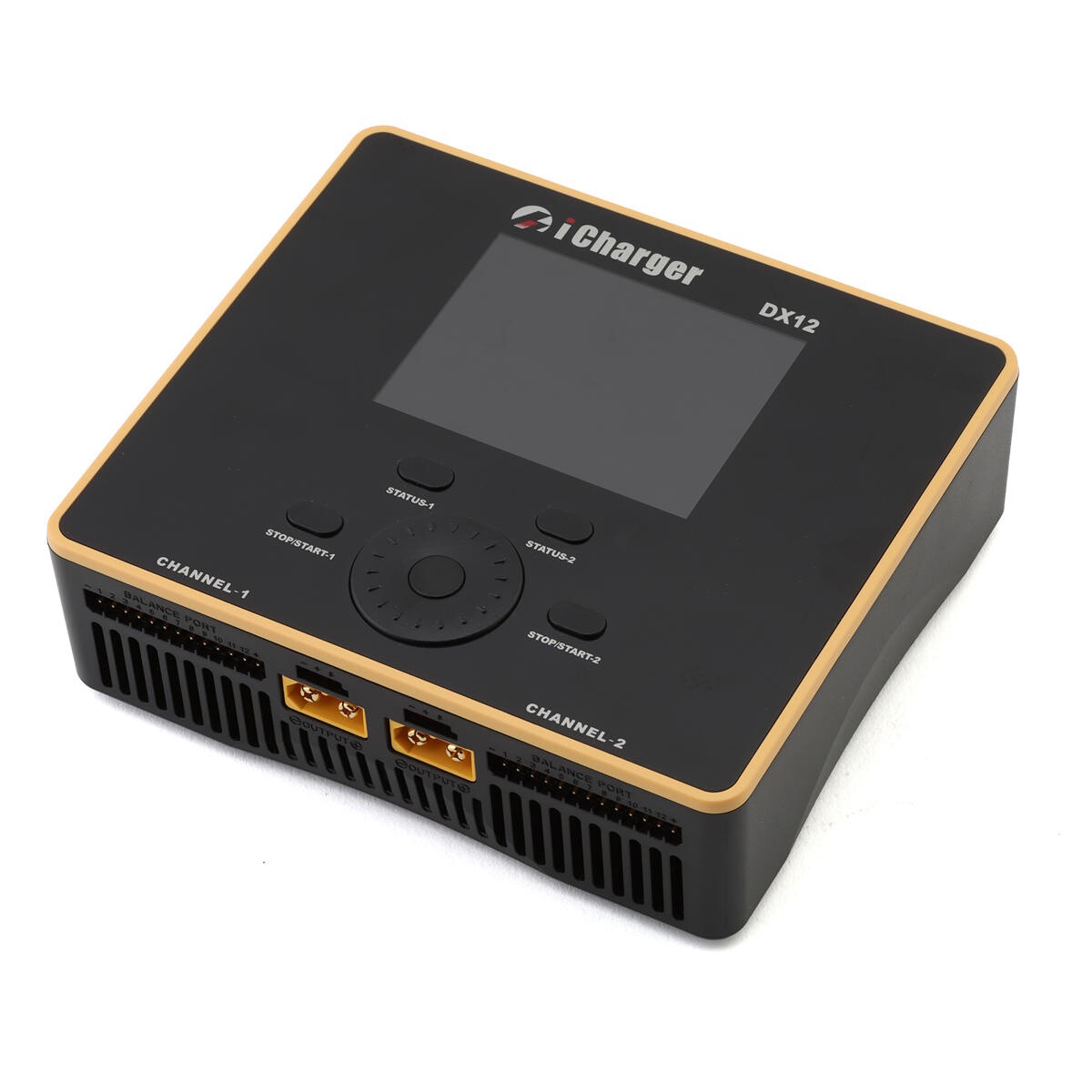

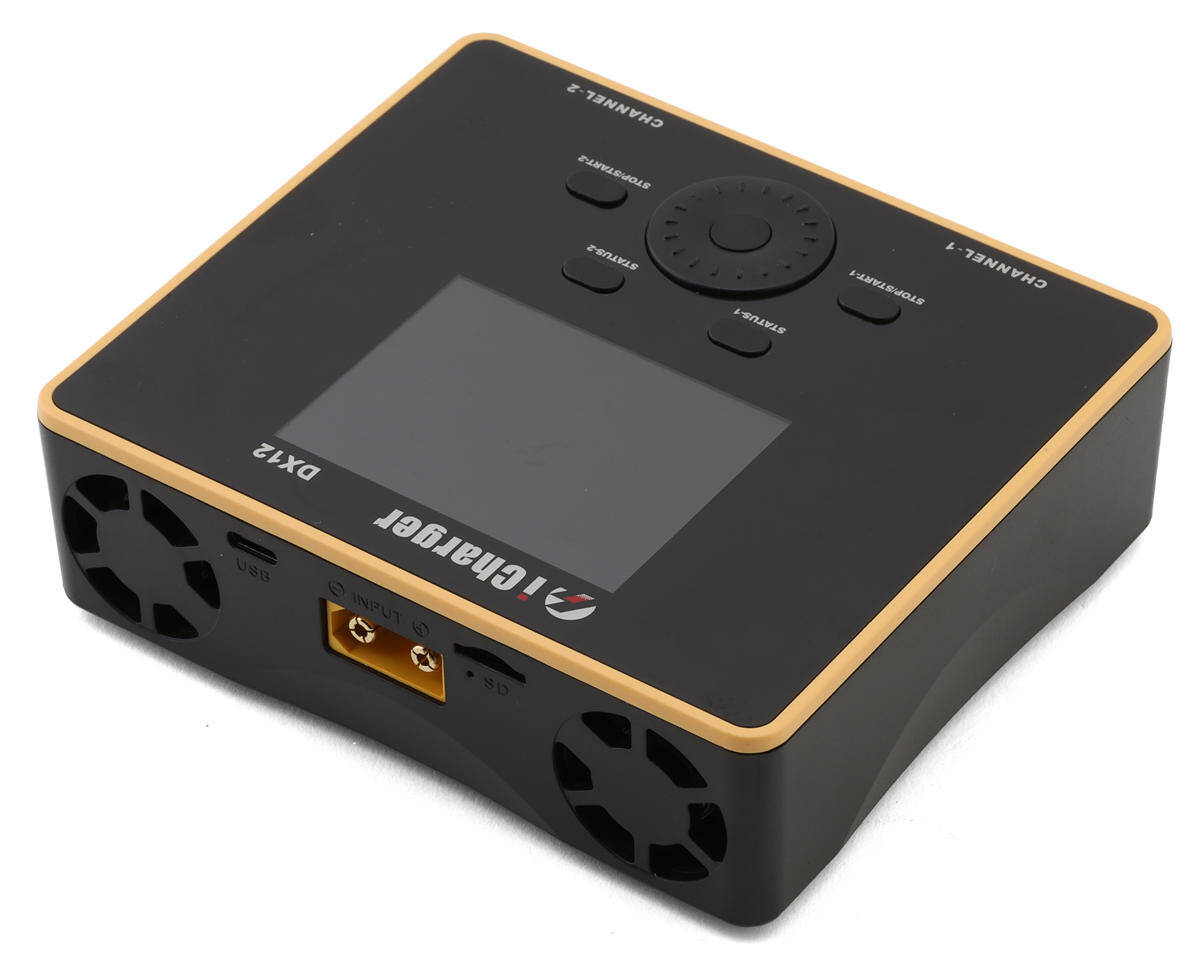

Junsi iCharger DX12

The Junsi iCharger DX12 is a cutting-edge charging solution designed to meet the demands of hobbyists and professionals alike. With advanced synchronous buck-boost DC/DC converter technology, this charger delivers high-power and high-current performance for efficient battery charging. Let’s explore its impressive features:

Maximum Charge Power Capacity: The DX12 boasts a maximum charge power capacity of up to 1700W, ensuring rapid and effective charging. It supports a wide range of battery types, including:

• LiPo
• LiFe
• NiMH
• NiCd
• And more!

Dual-Channel Design:

• Simultaneously charge two batteries with the dual-channel design (up to 30A per channel).
• Versatile and adaptable for various applications.

Informative LCD Screen: The 2.8″ IPS LCD screen provides real-time monitoring of charging parameters:

• Current
• Voltage
• Power
• Capacity
• Internal resistance
• Temperature

Safety Features:

• Digital-Power Mode: Enhanced protection with features like over-current and over-voltage protection.
• Intelligent Fan Control: Based on internal temperature sensing, it ensures efficient cooling during charging.

Type-C Power Delivery (PD) Port:

• Conveniently charge your mobile devices using the Type-C PD port.

Balancing Technology:

• Advanced balancing technology with internal resistance correction ensures optimal battery health.

Multi-Discharge Options:

• Choose from various discharge modes, including regenerative discharge.

User-Friendly Interface:

• Easily manage your charging operations with the user-friendly interface.
• Import/export data and upgrade as needed.

Whether you’re an RC enthusiast, drone pilot, or hobbyist, the iCharger DX12 offers unmatched performance and reliability—a must-have for precision and efficiency in battery management!



Specifications:

• Dimensions: 4.4×5.06×1.6in. (111.5×128.5x40mm)
• Weight: 17.64oz (500g)
• Maximum Charge Power Capacity: 1700W (1200W per channel)
• Maximum Charge/Discharge Current: 50A (30A per channel)
• Maximum Discharge Power Capacity: 80W (Channel 50Wx2)
• Maximum Regenerative Discharge Power Capacity: 1700W (Channel 1200Wx2)
• Maximum Extra Discharge Power Capacity: 3000W (Channel 1500W @ 50V/30A)
• Maximum Current Drain for Balancing: 4A (Channel 2Ax2)
• Type-C PD Port: 5V/3A, 9V/2A, 12V/1.5A
• Support Battery Type: LiPo, Lilo, LiFe, LiVH, LTO, NiZn, NiMH, NiCd, Pb
• Input Voltage Range: 11—53VDC
• Maximum Input Current Limit: 65A (Channel 45A)
• Maximum Current Drain for Balancing: 2A x2 (4A Bridged)

Includes:

• (1) iCharger DX12 Dual DC Battery Charger
• Balance boards and cables
• Power cables
• Instruction manual
