Hobbywing XeRun V10 G5 Motor

Description

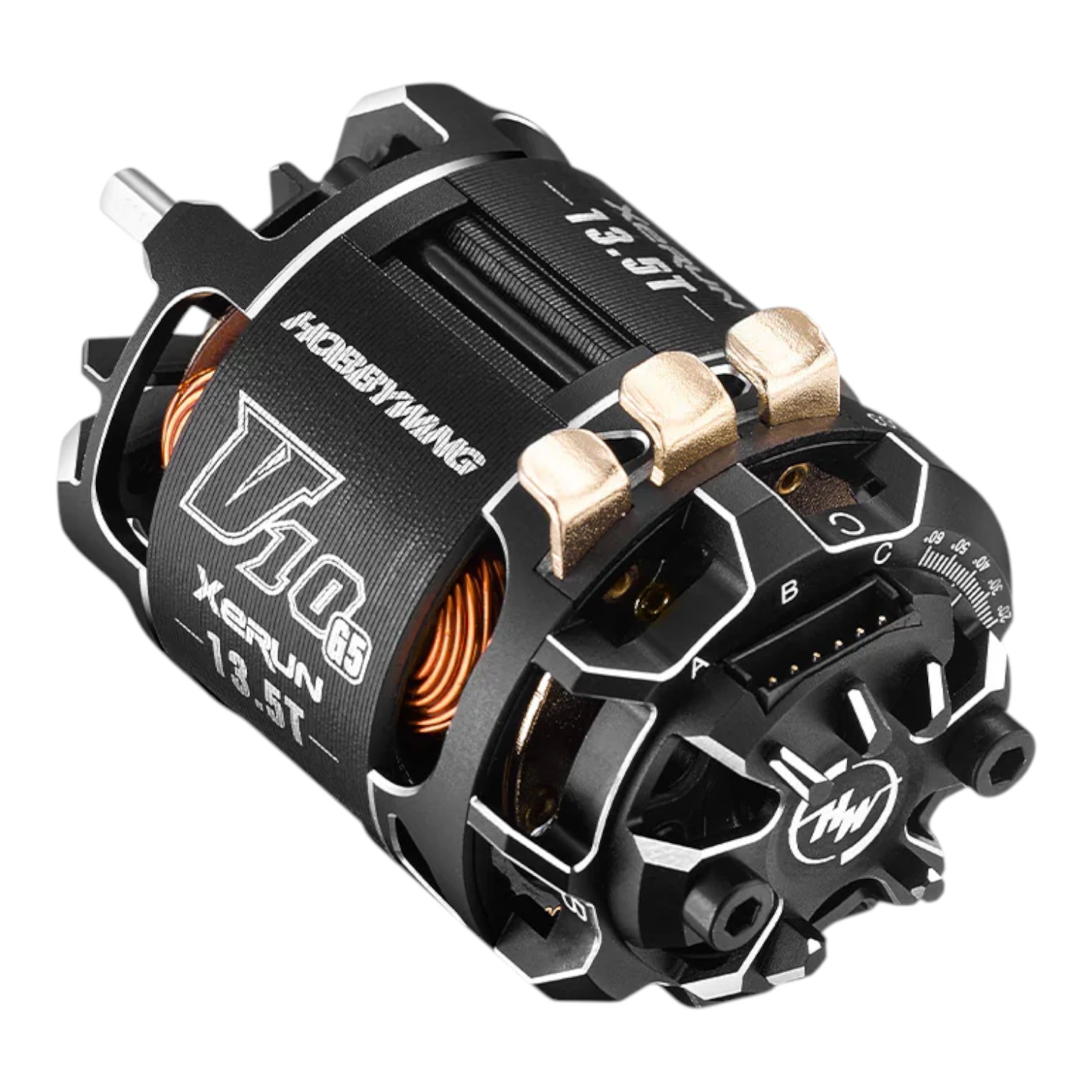

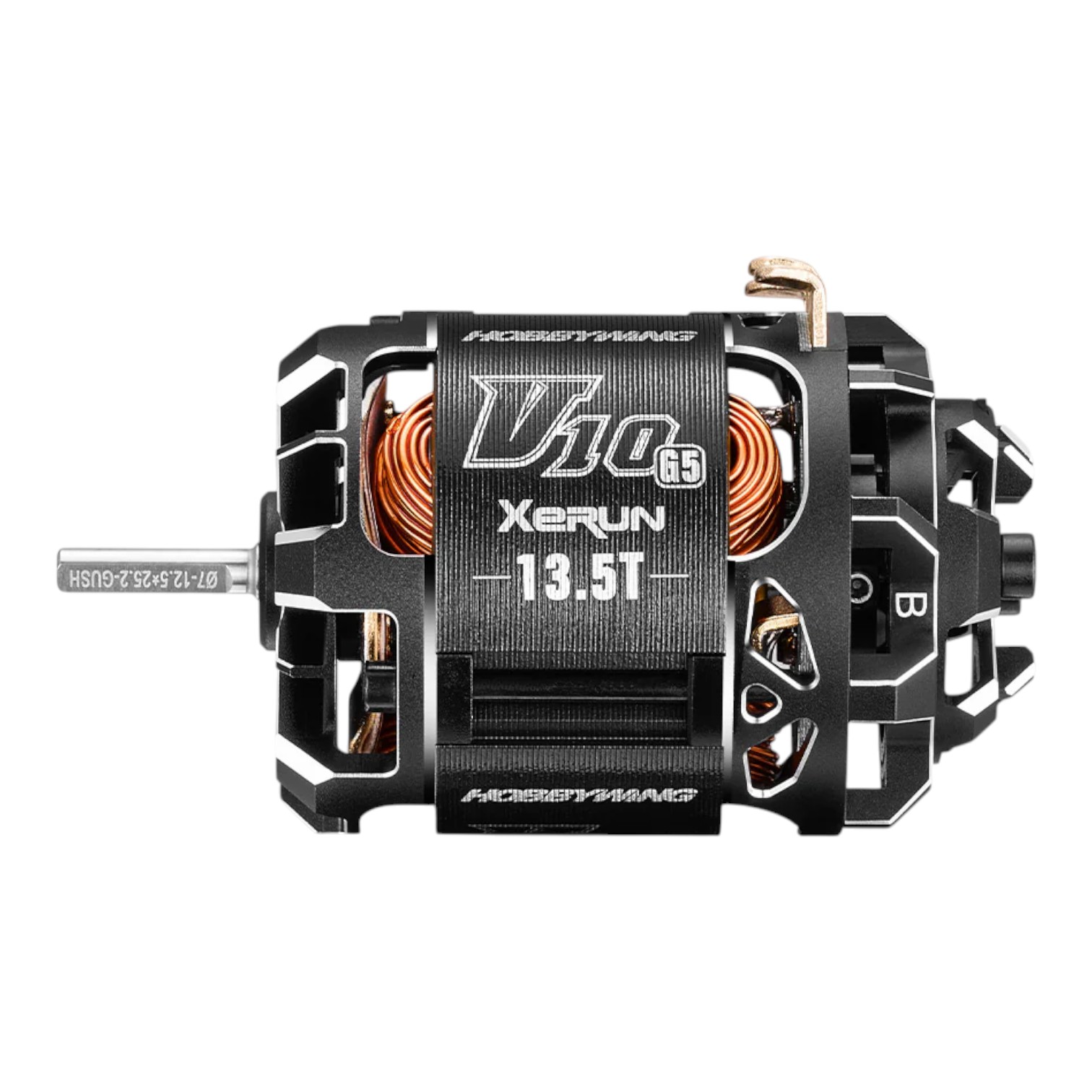

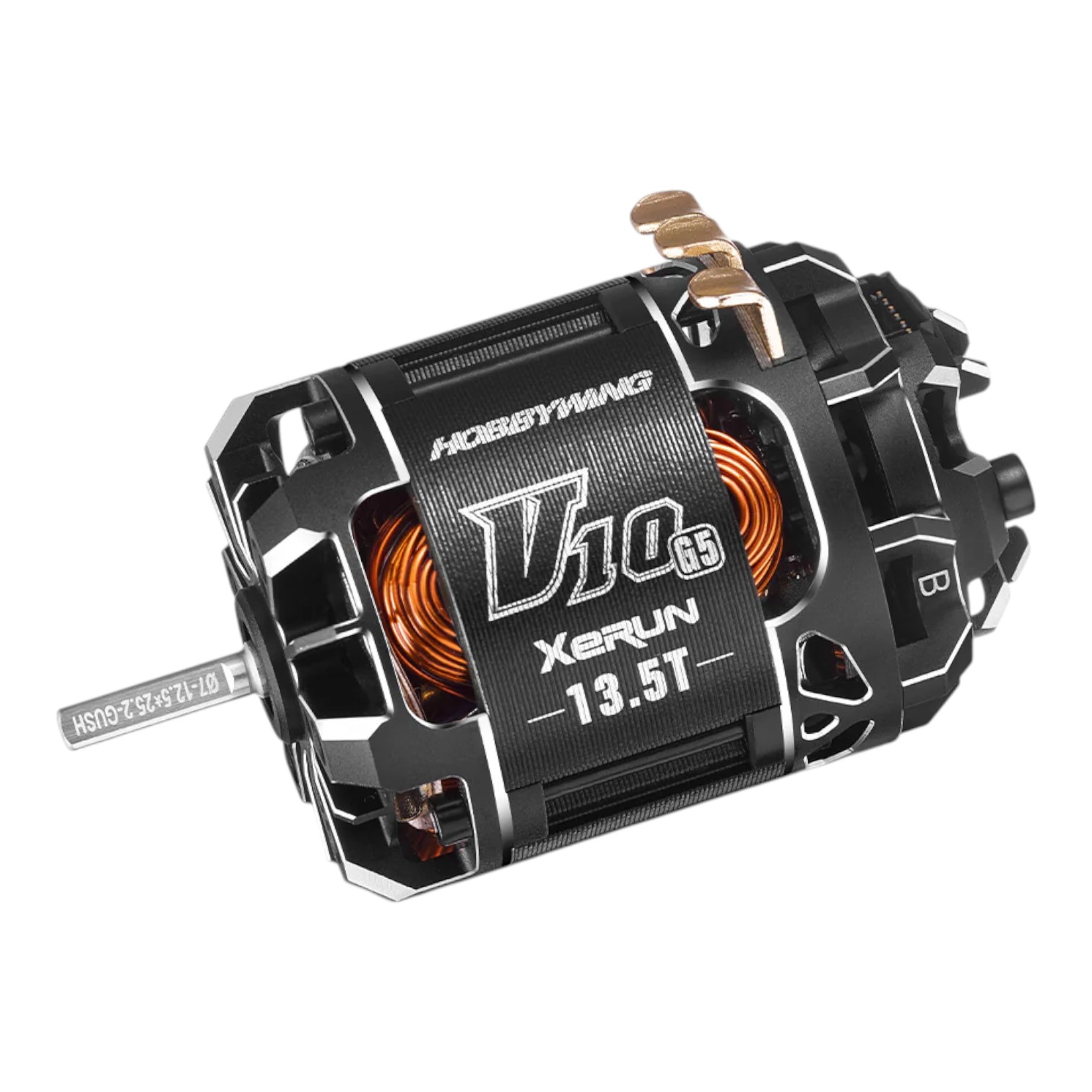

Hobbywing XeRun V10 G5 Motor

Hobbywing XeRun V10 brings team-level motor performance to every racer. Moreover, the G5 build follows the same tight standards that win major titles. Therefore, you get factory-grade power without a factory deal. In addition, the platform targets what matters most on track: speed, weight, and heat control.

First, the G5 generation pushes stock performance forward with measurable gains. Next, it improves efficiency so you waste less energy per lap. Finally, it trims weight and centers mass for sharper cornering. As a result, your car feels more planted and more predictable through long mains.

Engineered for ultimate performance

Specifically, Hobbywing XeRun V10 G5 increases maximum output power by 3.9% versus the prior G4R generation. Additionally, it boosts efficiency by over 4%, which helps runtime and reduces heat. Furthermore, the motor drops about 13 g, and it shifts balance closer to the chassis centerline. Consequently, you gain agility without giving up stability.

• More raw power: 3.9% higher peak output than G4R.
• Maximum efficiency: 4%+ improved efficiency for better runtime.
• Featherweight agility: 13 g lighter with a more centered feel.

Key features that win heats

Notably, the G5 focuses on temperature control and precise sensor alignment. Therefore, you can push gearing harder while keeping consistency. Also, the modular layout speeds up cleaning between rounds. In fact, quick maintenance often prevents late-day power fade.

For background, brushless design relies on brushless DC motor principles to deliver efficient torque and high RPM. Consequently, cooling and sensor accuracy matter even more in stock racing.

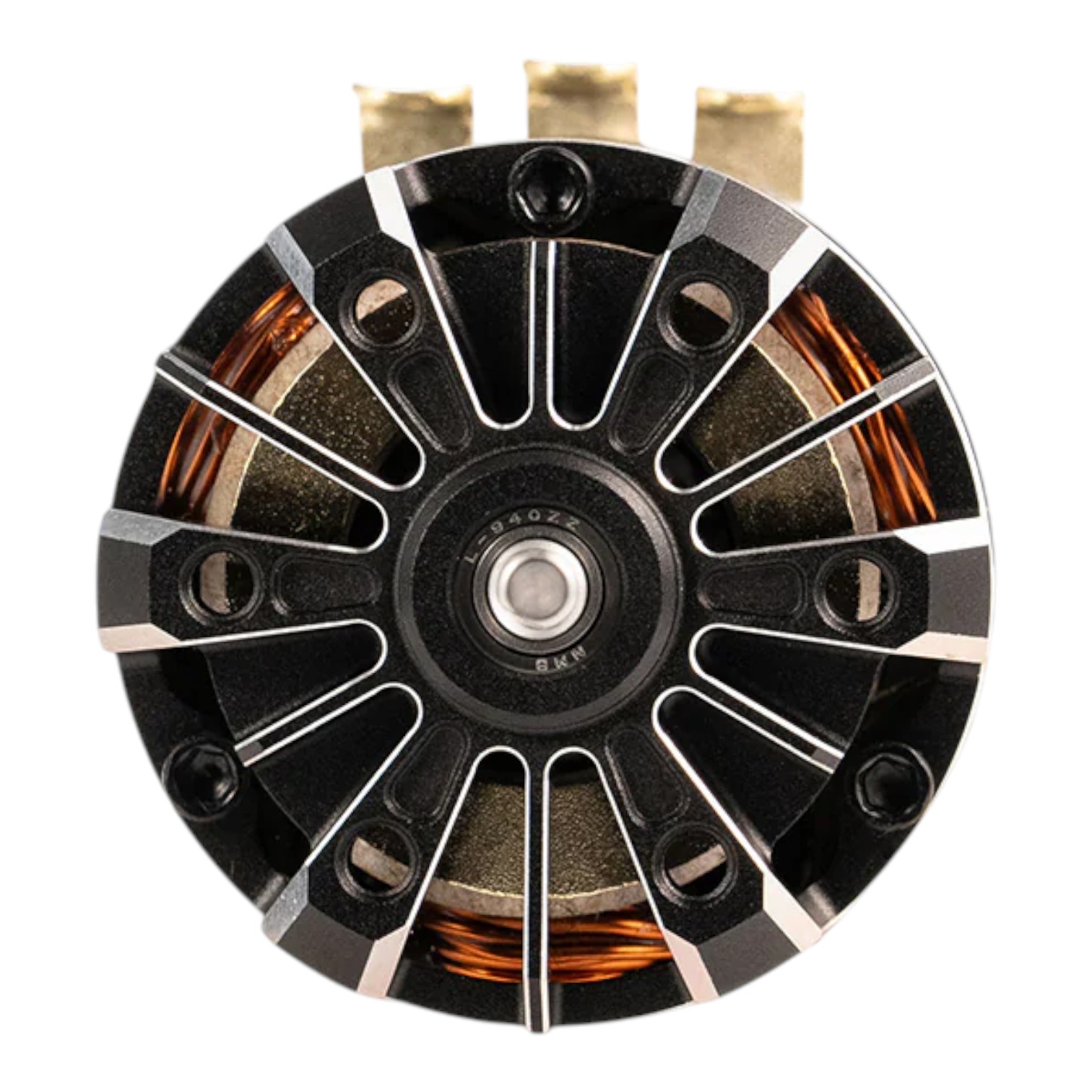

• Advanced thermal management: an exposed winding endbell increases airflow and sheds heat faster.
• Rotor cooling focus: improved thermal efficiency helps keep power consistent from tone to finish.
• Precision fine-tuning: adjustable Hall timing alignment supports smoother running and cooler temps.
• Adjustable sensing distance: choose from three rotor-to-sensor settings to tune throttle feel.
• Built to last: premium stator core, reinforced 180°C-rated rotor coating, and high-speed bearings.

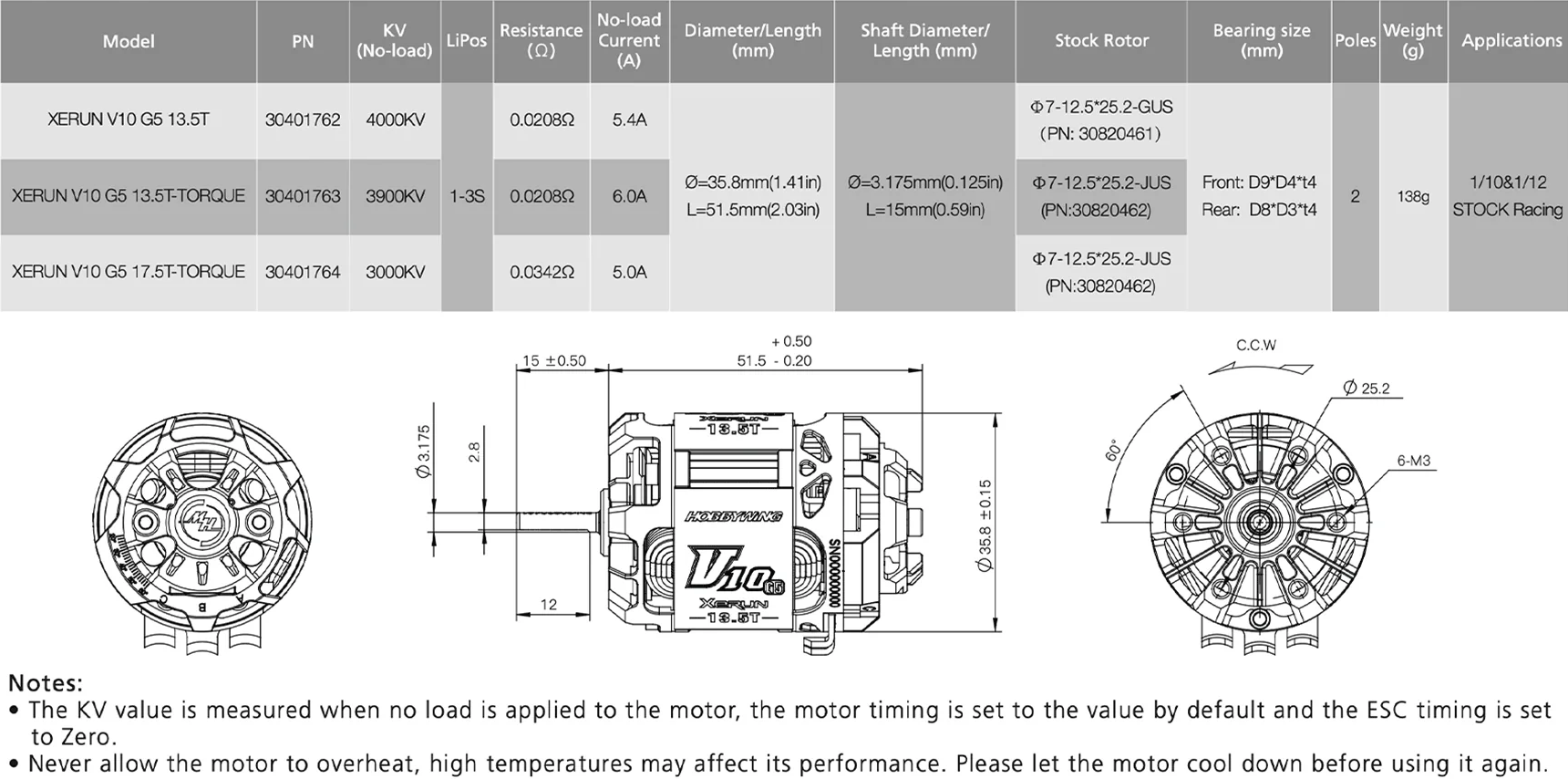

Choose your 13.5T option

When you run 13.5T, match the motor version to your track first. Then, fine-tune gearing and timing for conditions. Similarly, pick the option that complements grip level and corner style.

• SPEED version: higher RPM ceiling for medium-to-low grip and larger, flowing layouts.
• TORQUE version: stronger rotor feel for medium-to-high grip and tighter, technical tracks.

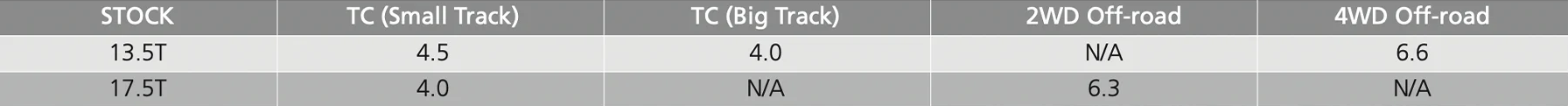

FDR tuning guide for Blinky

FDR means Final Drive Ratio. In simple terms, it tells how many motor rotations turn the tires once. Therefore, it directly affects acceleration, top speed, and motor temperature. However, one FDR never fits every day, because grip, tires, heat, and vehicle weight change constantly.

Important setup note: Use recommended FDR values as baselines for Blinky mode. First, start practice on the baseline and watch motor temps closely. Next, adjust in small steps based on lap time and heat. Finally, if your chassis lacks a published chart, begin with a higher numerical FDR for safety, then gear up gradually.

Ultimately, Hobbywing XeRun V10 G5 rewards careful testing. Moreover, consistent temps and repeatable throttle feel often decide podiums in stock. Therefore, log your FDR, timing, and temps each run, and you will converge on the sweet spot faster.
