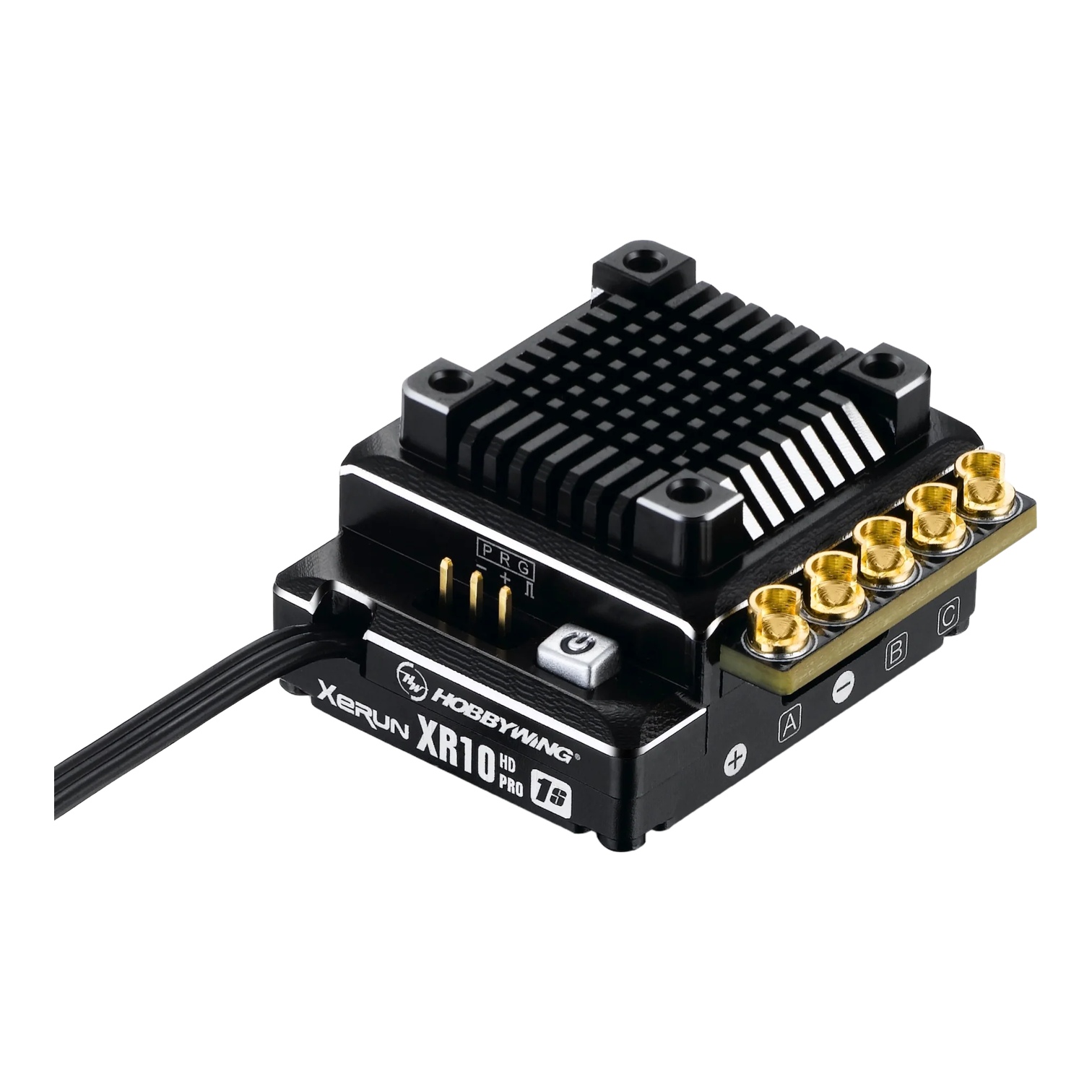

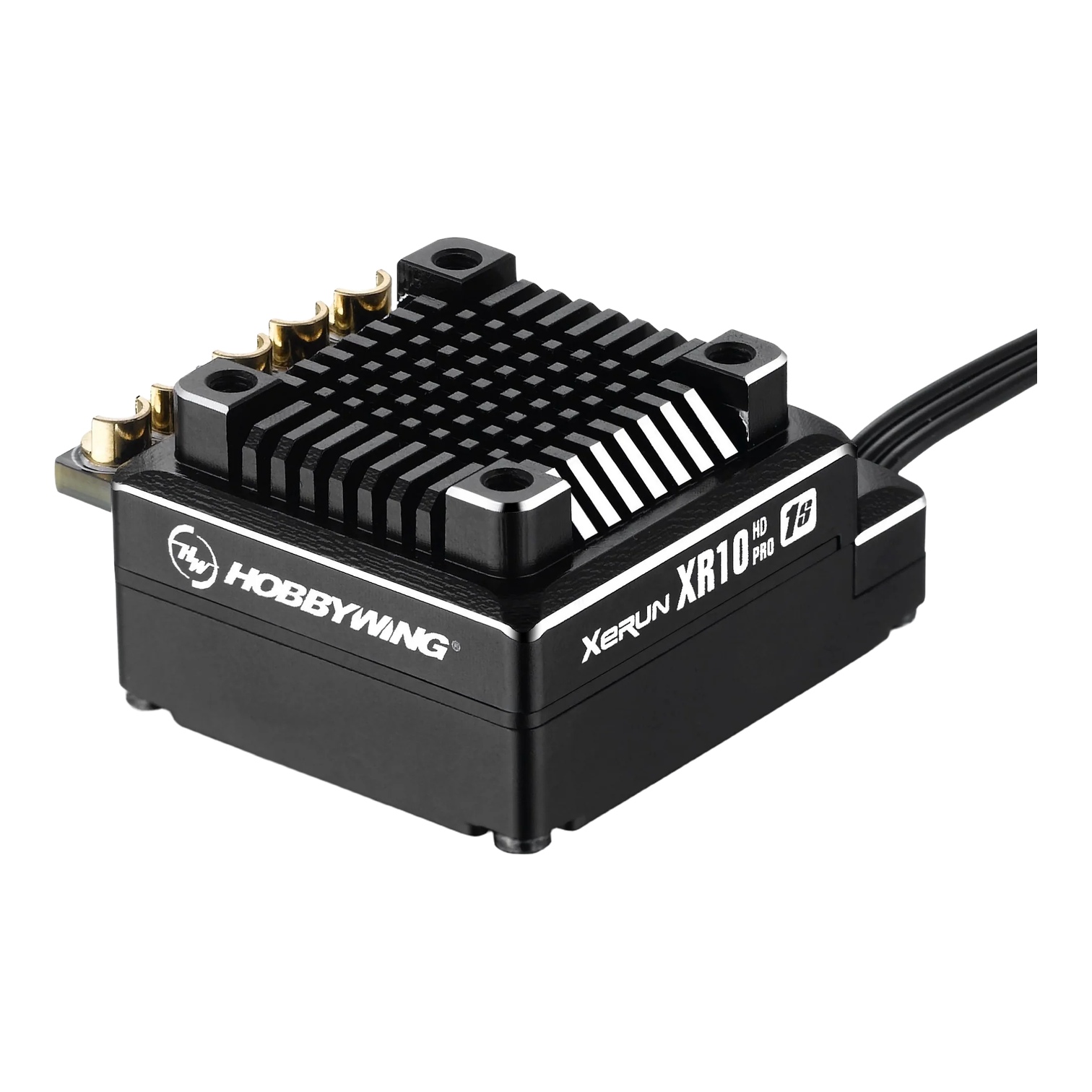

Hobbywing XeRun XR10 PRO 1S HD ESC

Description

Hobbywing XeRun XR10 PRO 1S HD ESC

Hobbywing XR10 PRO gives 1/12 scale racers a smaller, lighter ESC for serious stock and modified racing. Specifically, the XR10 PRO 1S HD uses a redesigned platform that saves space on tight chassis layouts. Moreover, its 46.7 g footprint and integrated capacitor module help you balance the car and simplify wiring.

Additionally, premium Toshiba MOSFETs deliver smooth throttle and strong brake control without extra bulk. Therefore, you gain cleaner routing and better airflow around electronics. Notably, that airflow helps you hold efficiency and reduce heat during long mains.

Key performance features for 1/12 racing

First, ROAR approval keeps your setup legal for many race programs. Next, the built-in Super BEC booster outputs up to 6V/3A, so you can run a high-performance servo directly. Moreover, deep PWM frequency tuning lets you match throttle feel to grip and driving style.

• Compact domination: 40% smaller in volume and 24% lighter, with about 12 g saved.
• Super BEC onboard: Switch-mode 6V/3A output supports demanding servos cleanly.
• Precision control: Adjustable PWM options improve throttle and brake linearity.
• Wireless tuning ready: Use an optional OTA Programmer or LCD Program Box via the PRG/FAN port.
• Innovative data logging: Track max ESC and motor temps, plus peak RPM.
• Heavy-duty reliability: A dust-proof electronic switch targets long service life.

In addition, data logging helps you spot thermal spikes early after each run. Consequently, you can adjust rollout, timing, or gearing before power drops off. For background, you can review electronic speed control principles and relate them to your tuning choices.

Specifications at a glance

Finally, confirm fitment and electrical requirements before race day. Also, check your class rules for wiring, fan use, and voltage limits.

• Applications: 1/12 Scale Brushless Sensored (Stock / Modified)
• Continuous / Peak current: 120A / 830A
• Input voltage: 1S LiPo / 3–4 cells NiMH
• BEC output: Switch Mode 6V/3A
• Dimensions: 37.5 × 31 × 31 mm
• Weight: 46.7 g (1.65 oz)

Quick setup tips for cleaner laps

First, use the separate PRG/FAN port to run a fan or connect your program box between heats. Next, begin with smooth PWM settings, then adjust drag brake in small steps to keep the rear stable. Additionally, review peak RPM and temperature logs after each main, and then fine-tune gearing for efficiency.

Meanwhile, keep wires short to benefit from the integrated capacitor module. Ultimately, careful tuning helps the Hobbywing XR10 PRO deliver smooth power and consistent lap times.
