ToolkitRC M8D

Description

ToolkitRC M8D

Touch the Power. Control the Charge.

1600W Output | Dual 1-8S Channels | 3.5″ Flip Touchscreen

Meet the M8D—the dual-channel charger that redefines your workbench. With a massive flip touchscreen, a brand-new UI, and up to 50A of charging power, it is built for those who demand precision and speed.

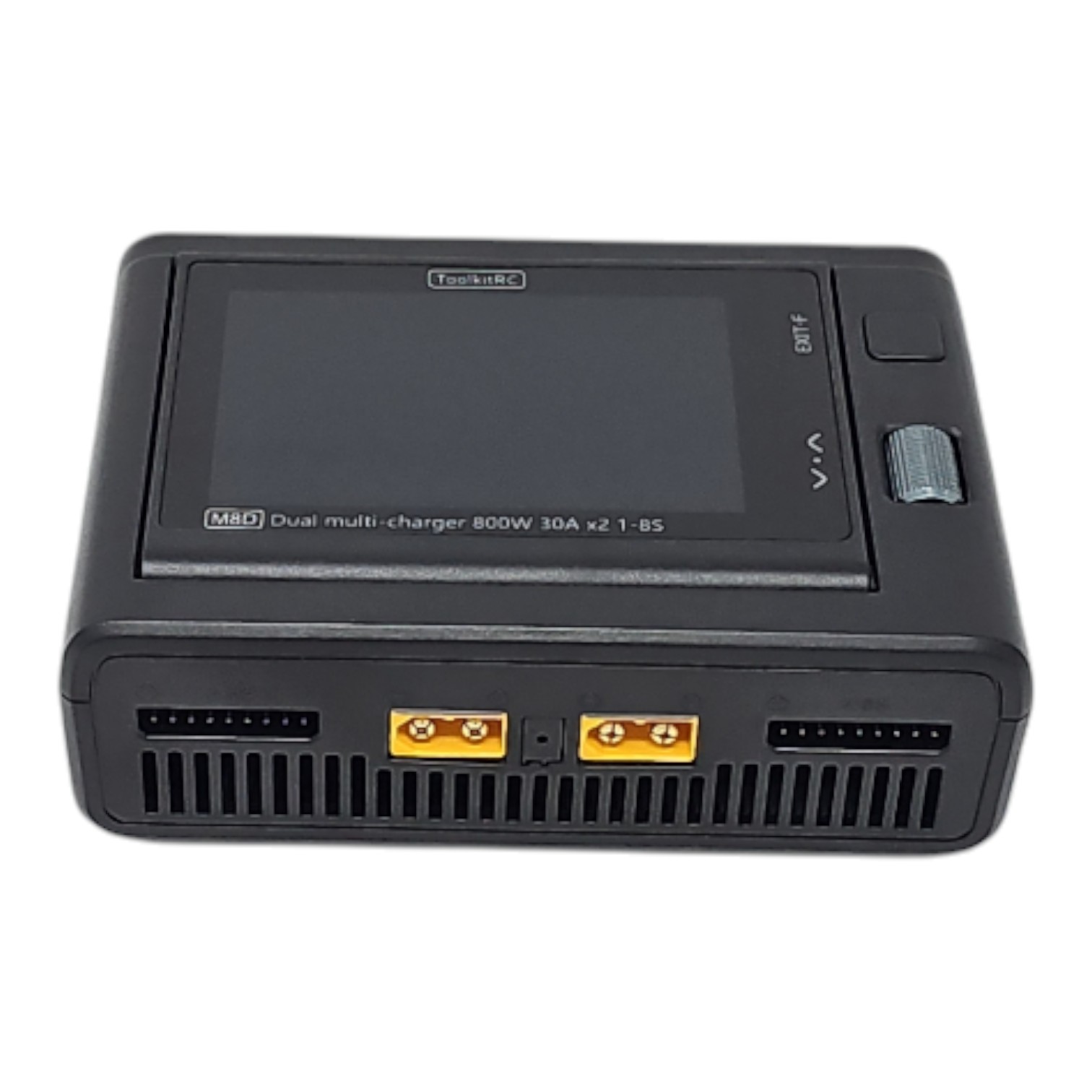

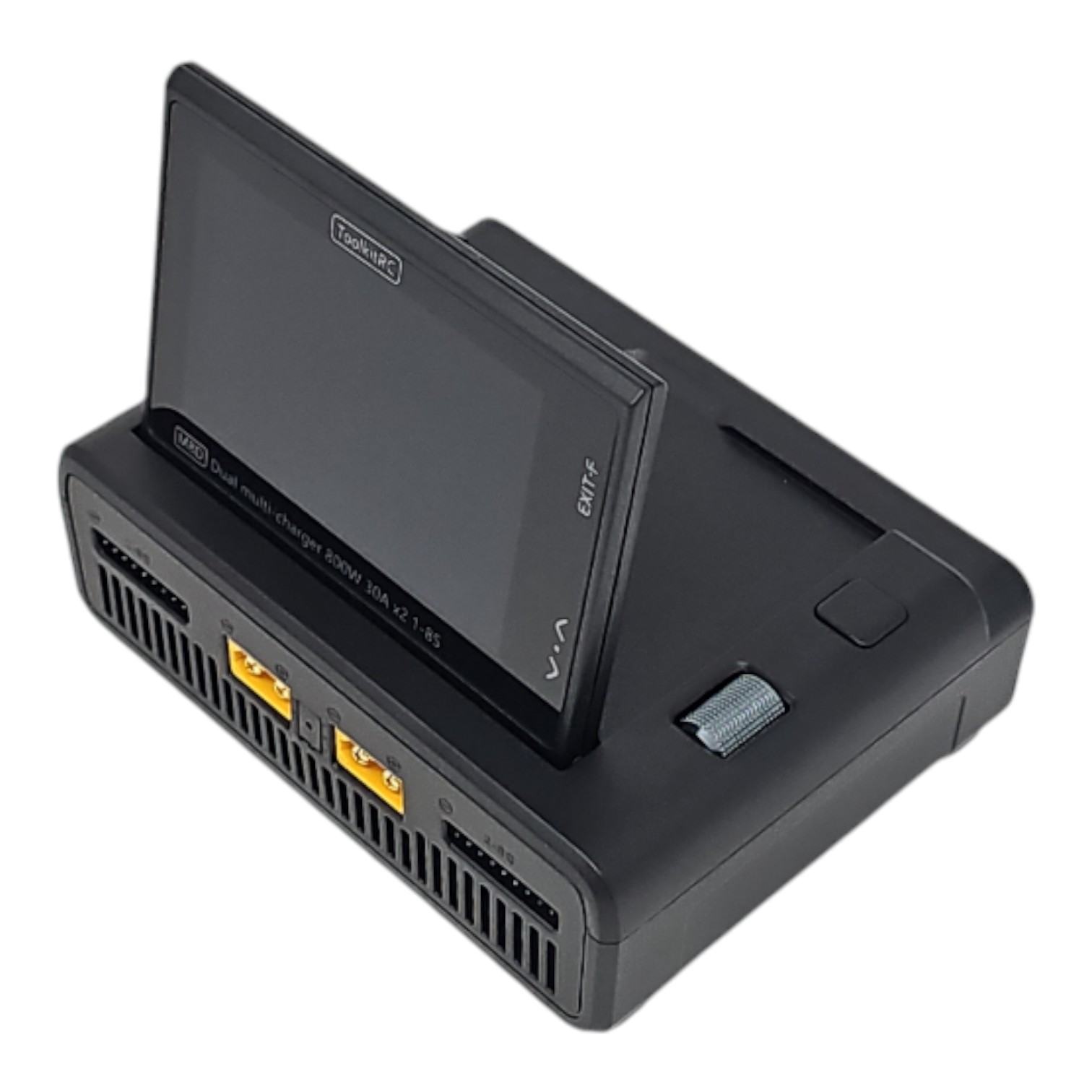

Massive Flip Screen

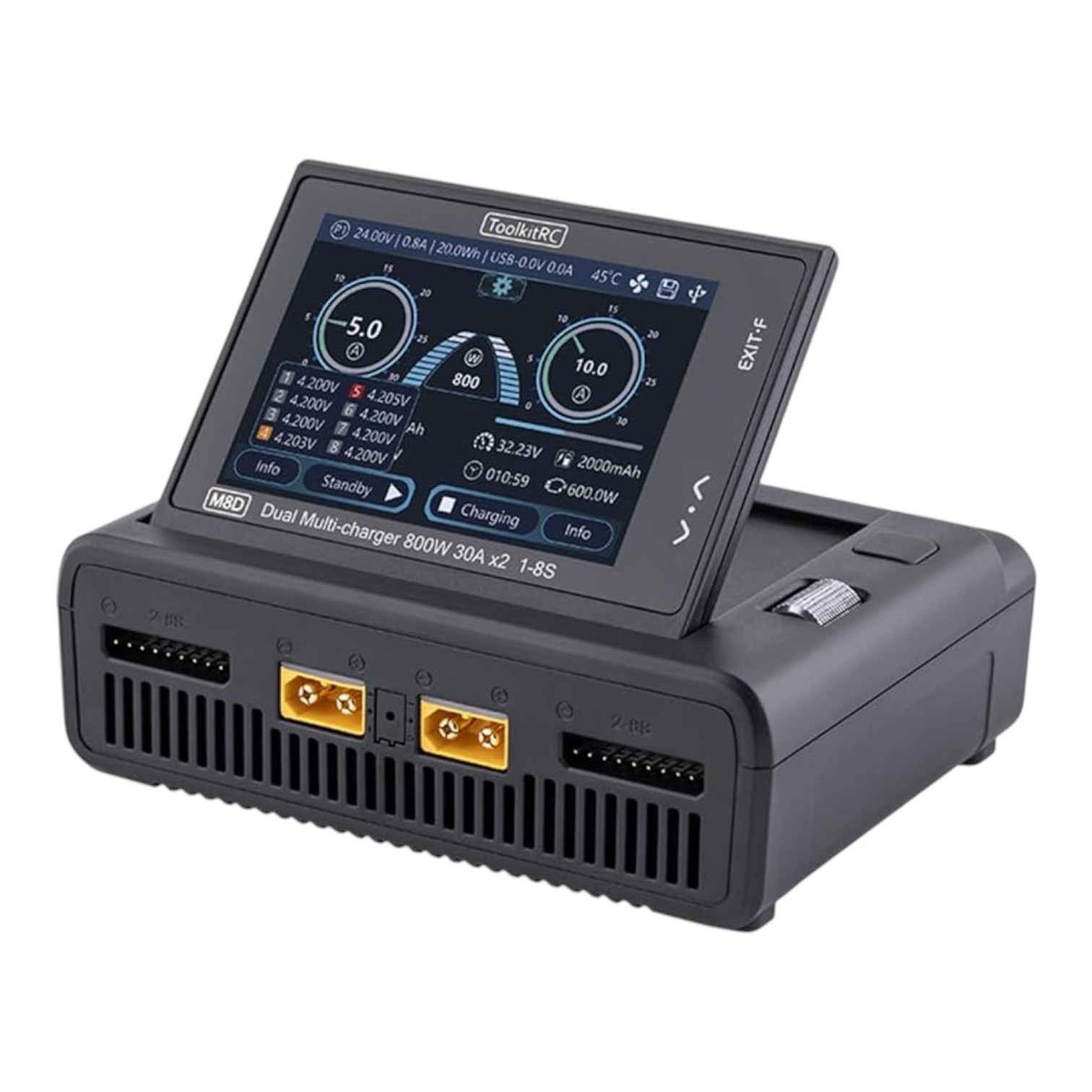

Don’t squint at your charger. The M8D features a 3.5″ IPS Touchscreen (320×480) with a flip design, ensuring you have the perfect viewing angle whether you are standing at the bench or sitting at the field.

New Touch UI

Experience a completely new user interface designed specifically for touch habits. Navigate menus, check voltages, and set parameters faster and more intuitively than ever before.

Dual-Channel Dominance

Why wait? Charge two batteries at once with independent 8S outputs.

• Asynchronous Mode: Charge two distinct packs at up to 800W each (30A).
• Synchronous Mode: Combine channels to pump 1600W (50A) into a single massive pack.

Battery Destruction Mode

Safety is paramount. The M8D includes a dedicated Battery Destruction Function, allowing you to safely discharge used or damaged batteries all the way to 0V for eco-friendly disposal.

Smart Thermal Control

Stay cool under pressure. Dual fans with infinitely adjustable speed react to real-time temperature and power loads, delivering high-efficiency cooling with minimal noise.

65W Fast Charge USB-C

Keep your other gear ready. The built-in USB-C output delivers up to 65W to fast-charge your laptop, tablet, or smartphone while you wait for your flight packs.

Technical Specifications

Power & Input

• Input Voltage: DC 10.0-49.0V @ MAX 60A
• Charging Power (Sync): 1600W @ MAX 50A
• Charging Power (Async): 800W @ MAX 30A (x2)
• Discharge Power (Recycle): 800W @ MAX 30A (x2)
• Discharge Power (Normal): 40W @ 10A
• Balance Current: 2000mA @ 4.2V
• USB-C Output: 5.0-20.0V @ 65W

Battery Compatibility

• LiPo / LiHV / LiFe / Lion / LTO: 1-8S
• NiMh: 1-20S
• Pb (Lead Acid): 1-12S

Display & Interface

• Screen Type: IPS 3.5” LCD (Capacitive Touch)
• Resolution: 320 x 480 pixels

Physical Dimensions

• Size: 130mm x 97mm x 42mm
• Weight: 450g

What’s in the Box

• 1x ToolkitRC M8D Charger
• 1x USB-C Data/Power Cable
• 1x XT90 Input Cable
• 1x Screen Protector
• 1x User Manual
