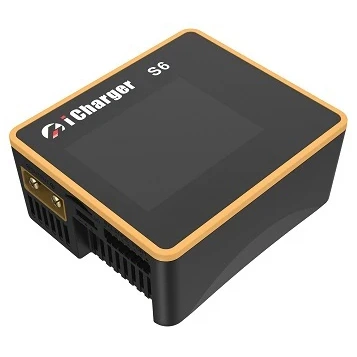

Junsi iCharger S6

Junsi iCharger S6 gives you huge charge power in a palm-size charger. Moreover, it delivers up to 1100W and 40A for fast cycles. Therefore, you spend less time waiting between runs.

Additionally, the S6 packs advanced tools that serious RC racers use daily. For example, you can track internal resistance and tune charge profiles. As a result, you get steadier voltage and more consistent laps.

Key performance highlights

First, the compact case still handles high current with smart cooling. Next, the bright 2.4 inch IPS screen keeps key data easy to read. Consequently, you can confirm settings at a glance in the pits.

• Charge capability: up to 1100W and 40A
• Balance current: up to 2A for accurate cell balance
• Connectors: XT90 male input and output
• Display: 2.4 inch IPS LCD (320×240)

Battery compatibility and balancing

Notably, the charger supports up to 6s lithium packs across many chemistries. In addition, it supports LiPo, LiIo, LiFe, LiHV, LTO, and NiZn. Also, it handles 1-20s NiMH/NiCd and 1-12s Pb packs.

Furthermore, the balance algorithm helps correct for internal resistance differences. As a result, cells finish closer together, even on hard-used packs. For background, see lithium polymer battery chemistry and use.

Cooling and temperature protection

Meanwhile, the internal sensor adjusts fan speed as temperatures change. Therefore, the charger stays quieter at low load. However, it still ramps cooling when you push higher power.

Additionally, the S6 reduces output power if heat rises past your limit. Then, it shuts down if temperatures keep climbing. Consequently, you protect both the charger and your packs.

Display data, presets, and software

Specifically, the screen shows current, voltage, power, capacity, internal resistance, status, time, and temperature. Moreover, you can save up to 32 parameter sets for different packs. Afterwards, you can import or export data via SD card for easy tracking.

• Firmware updates: update via USB port or SD card
• PC analysis: use Junsi Console to display and plot charge and discharge data

Discharge modes and internal resistance tools

Also, Junsi iCharger S6 offers multiple discharge options for different workflows. For example, you can self-discharge for storage or use regenerative discharge back to the input. In addition, you can use lithium extra expanding discharge when you need it.

• Self-discharge
• Regenerative to input discharge
• Lithium battery extra expanding discharge

Finally, you can measure internal resistance online or offline. Notably, you can read pack IR and each lithium cell IR. As a result, you can spot weak cells before they cost you a main.

Specifications (quick reference)

• Input voltage range: 9-32VDC
• Max input current limit: <45A
• Max charge/discharge current: 40A
• Max charge power: 1100W
• Max discharge power: 40W
• Max regenerative discharge power: 1100W
• Max extra discharge power: 1200W @30V/40A
• Max balance drain: >2.0A
• Connector: XT90 male
• Net weight: 200g
• Dimensions: 83x71x36.5&plusmn;0.5mm

View more Junsi iCharger products here.

Ultimately, Junsi iCharger S6 combines compact size, high power, and deep data tools. Therefore, it fits racers who want speed, control, and repeatable results.
